Tube Feeder

RTL-3000

3 Axis cnc Turn-Drill-Mill Center


For Turning & Milling Designs

Adaptable Spindle

Part Catcher

Probing Systems

Hard Material Drilling

CNC machines for efficient wedding ring production

Conveyor

Tube Feeder

Machine Options

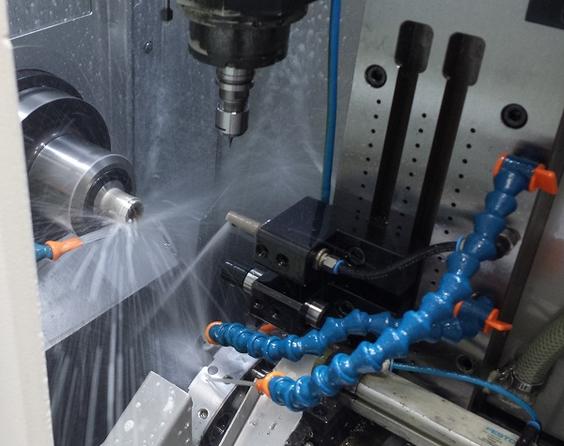

The RTL-3000 is a 3 axis Turn-Mill Lathe.

t's a complete solution for turning and milling wedding bands and bangles. The system can be customized to produce rings from:



  • Tubing
  • Solid Bar & Rectangle Bar
  • Cast Blanks
  • Roll Formed Blanks
  • Bangle Size Blanks

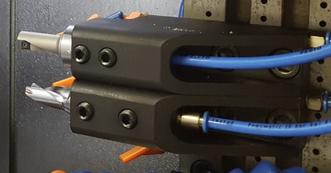

The RTL-3000 is standard with a 20 position servo turret & Toolchanger capable spindle to provide a wide range of ring designs and tooling for turning, drilling, and milling rings and bangles.



Milling capability choices are:

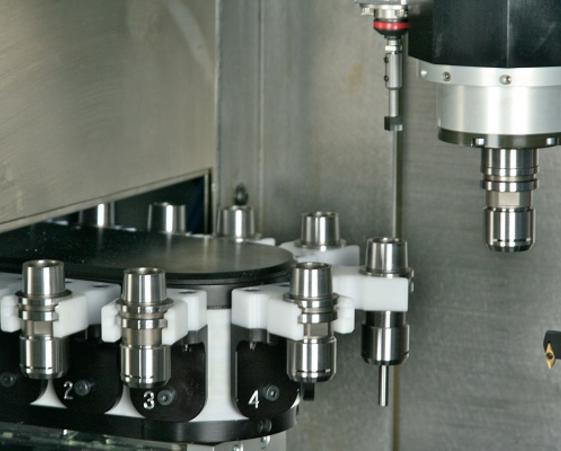

  • 1 High Speed Spindle with or without an 18 position Tool Changer.


The base machine can be used to machine blanks or add the tube feeder and part catcher with conveyor to allow unattended  machining of rings from tubing or bar.

(max tube/bar length 800mm / 30")

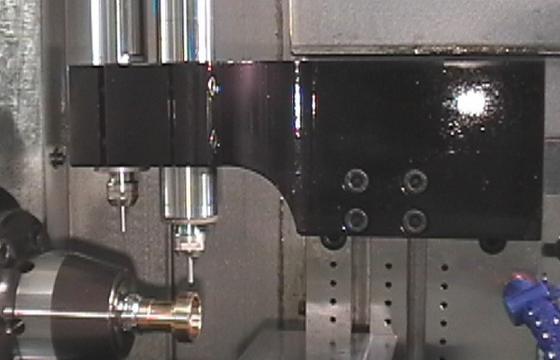

  • 1 or 2 NSK High Speed Spindles without Tool Change capability.






Features:



  • All of the Turning Capabilities of the RTL-2000


  • 3 Axis Drilling and Milling Capability (X-Z-C)


  • Compact Footprint


  • Fast Rapids for Reduced Cycle Times


  • Fagor 8055i Control and Servo System


Options:



Each machine can be customized to meet your specific needs.

RTL-3000      Turn & Mill in 1 Operation
