Full Radius Groove

Diamond tipped tools are available in multiple widths

  • 0.38mm
  • 0.50mm
  • 0.75mm
  • 1.00mm

Depth of cut is 1 x width

​Tools can be ordered in these materials:

  • Natural Diamond              (ND)
  • Mono Crystaline Diamond (MCD)
  • Poly Crystaline Diamond   (PCD)
  • Cubic Boron Nitride          (CBN)
  • Carbide                           (CAR)

​


This type of tool in diamond MCD, and PCD, has been the backbone of diamond cut tooling for jewelry faceting. Universally used and approved as a "standard of the industry"


We can use this posalux style of tool to mount in the turret and provide numerous grooves and diamond finishes on rings.


These posalux tools can also be mounted in our faceting heads for slotting and faceting in our live spindle machines.


Each tool is meticulously made, and is centered in the tool holder for precision repeatability.


Tools can be sharpened when worn to extend the life of the diamond tips.

Flat Groove (180)

Tools are available in multiple widths

  • 0.25mm
  • 0.50mm
  • 0.75mm
  • 1.00mm

Depth of cut is 1 x width

Angle Point Groove (VEE)

Tools are available in multiple widths & angles

  • 60 degree
  • 90 degree
  • 100 degree
  • 110 degree
  • 120 degree
  • 150 degree

The width of the tool sets the maximum depth of cut

Widths can be from 2mm to 5mm

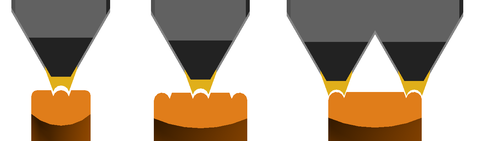

Profile options

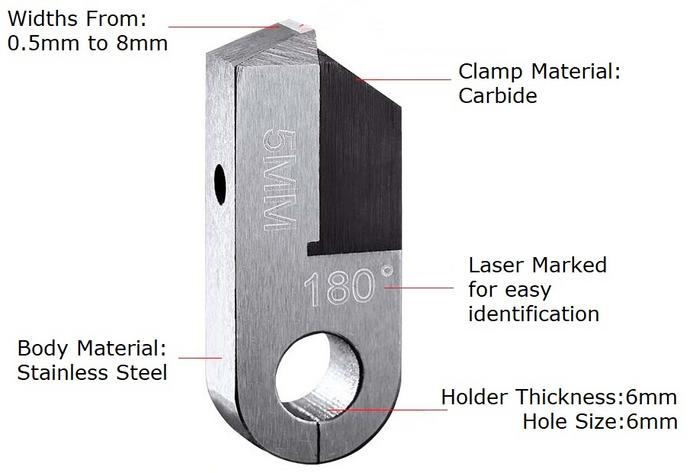

Posalux Style Diamond Tools

Tool Catalog

Skim Cut Tools (SC)

These tools generate a diamond finish on the outside of flat profiles.

Tool are 2mm wide with a lead in angle for a bright finish.


Available for outside & inside use.

Click Here To View Full Catalog

Ringtech has searched the world for a reliable, repeatable source for diamond tipped tools at reasonable prices.

We are proud to announce that we can now offer a world class product at a reasonable price to jewelry manufacturers.

We are proud to announce that we are a distributor for K&Y Diamond tooling.

Specializing in precision diamond tooling, K&Y are industry leaders in the field of diamond cutting tools.

Please call if you have a special tool you need

Posalux Style Diamond Tools

All Posalux style tools with an MCD width of 3mm or less


US$125.00 each + FedEX S&H (delivery within 7 days)

Concave Radius Tools (CC)

Tools are available in multiple radii and widths.

These tools provide a diamond finish on domed edge rings or can be used to finish the outside dome of a full domed ring.


  • Specify Radius
  • Specify Width


If you are unsure of your needs please contact us for assistance.

Call Toll Free 01-(844) RINGTECH (844) 746 4832

   Local US # 01-(623) 209 8912
