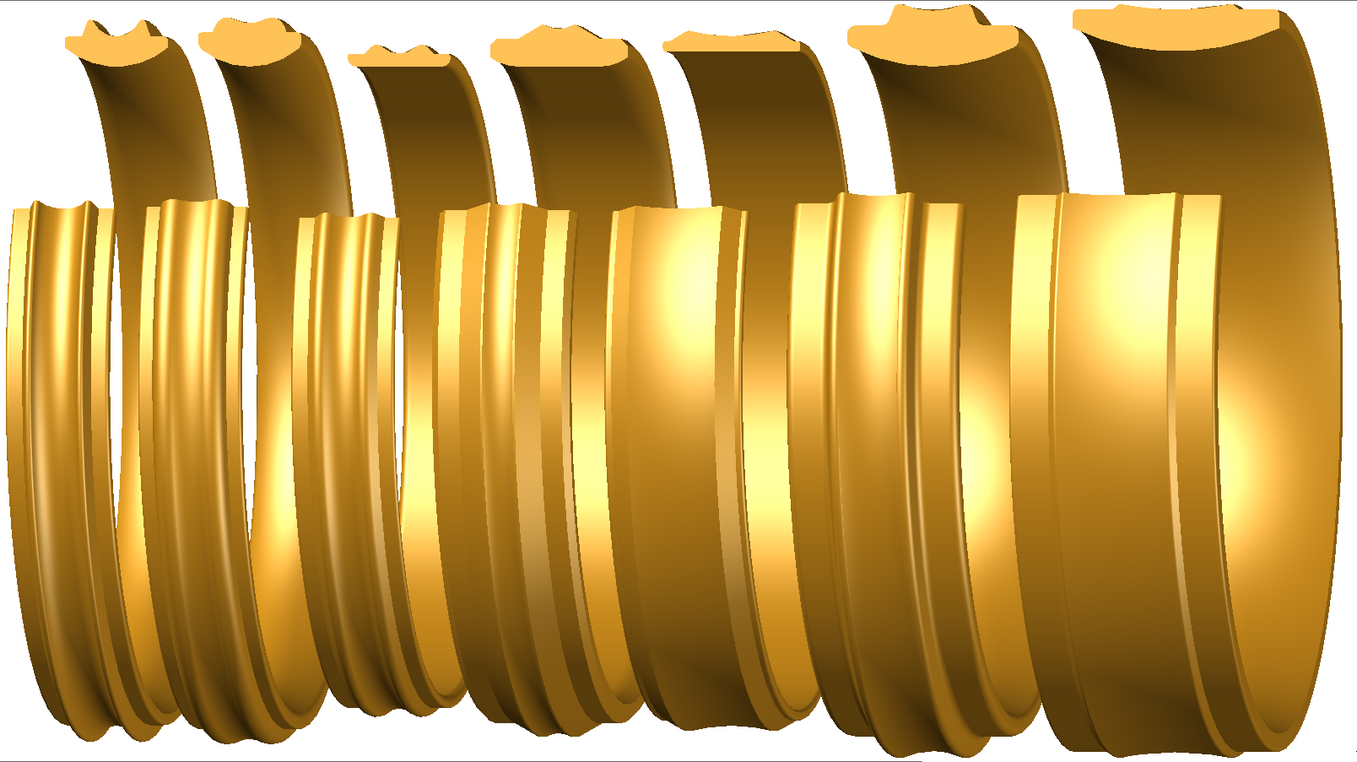

This profile has a flat edge with a raised concave center.

This profile works well for rings that can have a mill grain on the edge flat.

This design has a huge range of variations due to the number of variables.

• Any bore can be used on this design.
• Grooving Cycles can be added.
• Mill designs can be added
• Stone milling can be added

The key features that can be changed are :

• RING SIZE
• RING WIDTH

• RING THICKNESS
• EDGE THICKNESS

• EDGE WIDTH
• CENTER CONCAVE RADIUS
• ​STEP ANGLE

• EDGE RADIUS OR EDGE CHAMFER

• SIZE OF RADIUS OR CHAMFER​​

Design 424   Flat Edge, Concave Center Ring
