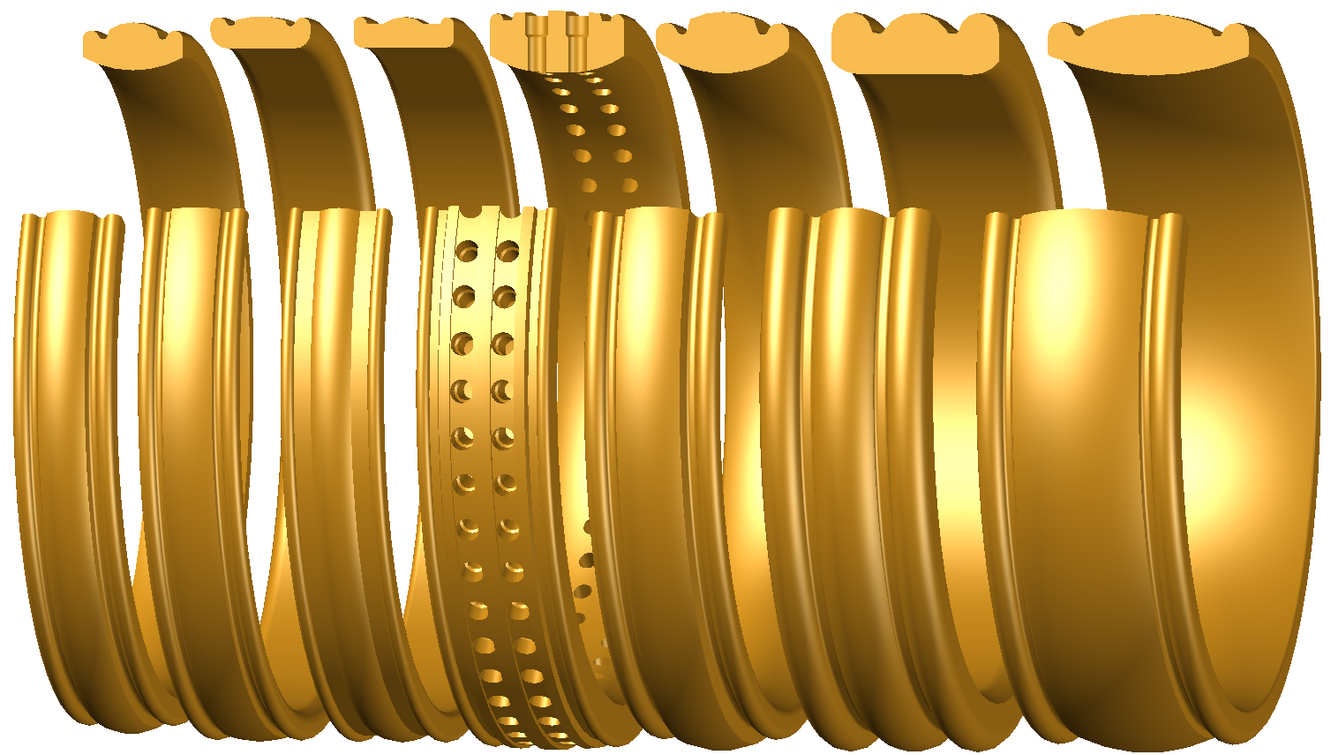

Design 414    Full Radius Edge Domed Center Ring

This profile is the basis for a large radius edge that is a full 180 degree radius with a raised domed center section.

Mill graining can be done in the edge groove or on the edge dome.


This profile works well using edge radius from 0.2mm up to 0.8mm.

​Adjusting the edge thickness can dramatically change the profile shape.


  • Any bore can be used on this design.
  • Grooving Cycles can be added.
  • Mill designs can be added
  • Stone milling can be added


The key features that can be changed are :


  • RING SIZE
  • WIDTH
  • THICKNESS
  • EDGE THICKNESS
  • EDGE RADIUS
  • CENTER RAISED ANGLE
  • ​DOME RADIUS
  • ​MILL GRAIN WIDTH
  • MILL GRAIN OPERATION
