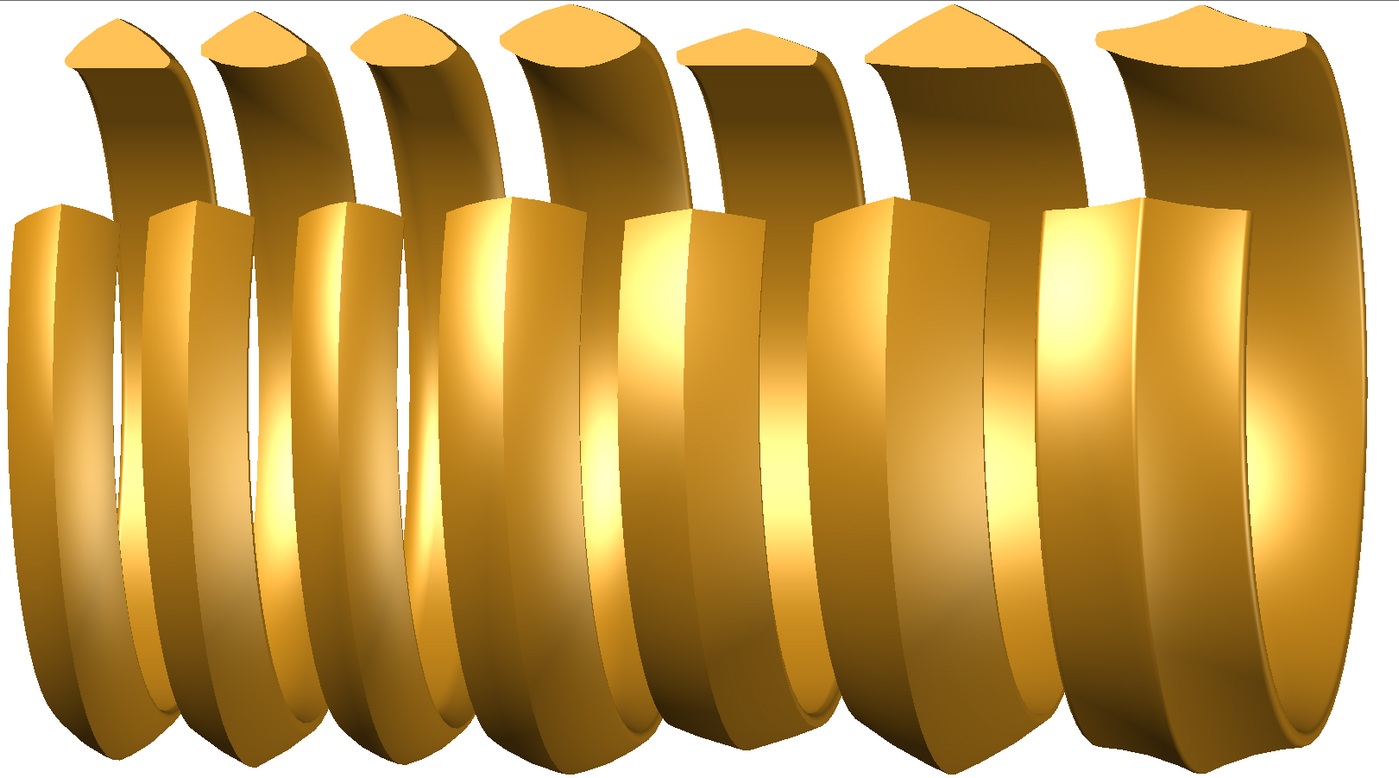

Design 409 Peaked Profile Ring

This profile is the basis for a variation on a domed profile ring.

Similar to a knife edge design with a radius instead of a flat face.

This profile works well in thicker cross sections.

The peak arc can be reversed to produce a concave radius profile.


  • Any bore can be used on this design.
  • Grooving Cycles can be added.
  • Mill designs can be added
  • Stone milling can be added


The key features that can be changed are :


  • RING SIZE
  • WIDTH
  • THICKNESS
  • ARC RADIUS
  • ARC DIRECTION (CONVEX OR CONCAVE)
